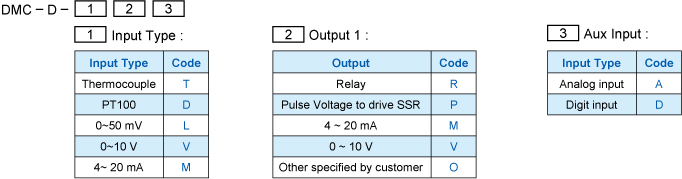

| Specification |
| Input |
Thermocouple (T/C) : J, K, T, E, B, R, S, N, C (ITS-90) |
| Pt100 : Excitation 180uA. 2 or 3 wire connection (ITS-90 α=0.00385) |
| mA : -24~24mA |
| mV : -60~60mV |
| Voltage : -10~10V |
| Sampling Rate |
100 mS |
| Control Mode |
Proportional Band : 0.0~300.0% (0.0%=On/Off mode) |

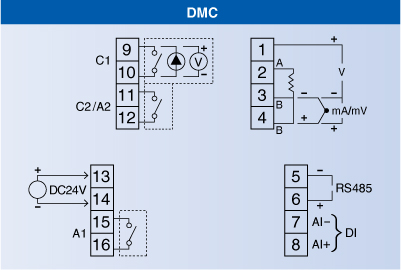

| Integral Time : 0~3000 sec |
| Derivative Time : 0~1000 sec |
| Hysteresis : 0.0~999.9 or 0~9999 |
| Cycle Time : 1~ 60 sec |
| Control Output |
Relay contact output : 3A/ 240 VAC (Resistive load) |
| DC 24V Pulsed Voltage for Driving SSR: (Max. load current 20mA) |
| Current Output : 4~20mA; (Resistive 600 Ωmax.) |
| Continuous Voltage Output : 0~10V (Resistive 500Ω min.) |
| Alarm Output |
Relay Contact Output : 5A/240 VAC (Rasistive load) |
| General Specifications |
Power supply : 24Vdc (19~32 Vdc) |
| Power consumption : 4.8VA Max. |
| Common mode rejection ratio : >80dB |
| Operating temperature : 0 to 55°C |
| Humidity : 0 to 85% RH (Non-Condense Condition) |
| Electromagnetic compatibility (EMC) : EN 61000-6-2, EN 61000-6-4 |
| Housing material : ABS plastic. UL 94V0 |
| Weight : 100g (3.5Oz) |
| Digital Communication |
EIA RS-485 with ModBus RTU mode Protocol |
| Baudrate: 9.6k,19.2k,38.4k,57.6k,115.2k bps |
| 1 start bit, 8 data bits, none/even/odd parity, 1 or 2 stop bits |
